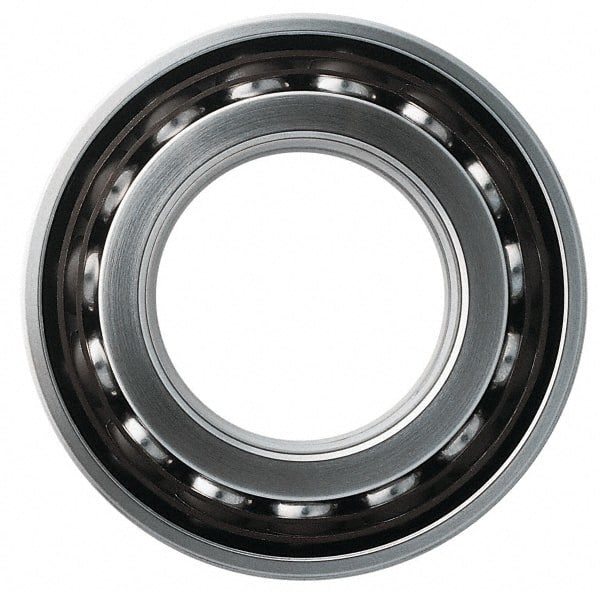

SKF - Radial Ball Bearings; Type: Angular Contact ; Style: Open ; Bore Diameter (mm): 40.00 ; Outside Diameter (mm): 90.00 ; Outside Diameter (Decimal Inch): 3.5400 ; Width (Decimal Inch): 0.9100
Item #: 45670452
Brand: SKF
Model #: 7308 BECBM
Product Specifications
Radial Ball Bearings; Type: Angular Contact ; Style: Open ; Bore Diameter (mm): 40.00 ; Outside Diameter (mm): 90.00 ; Outside Diameter (Decimal Inch): 3.5400 ; Width (Decimal Inch): 0.9100
| Type | Angular Contact |
| Style | Open |
| Bore Diameter (mm) | 40.00 |
| Outside Diameter (mm) | 90.00 |
| Outside Diameter (Decimal Inch) | 3.5400 |
| Width (Decimal Inch) | 0.9100 |
| Width (mm) | 23.00 |
| Flange Type | Without Flange |
| Number of Rows | 1 |
| Bore Type | Round |
| Contact Angle | 40 |
| Snap Ring Included | Without Snap Ring |
| Static Load Capacity (Lb.) | 30500 |
| Dynamic Load Capacity (Lb.) | 46200 |
| Maximum RPM | 8500 |
