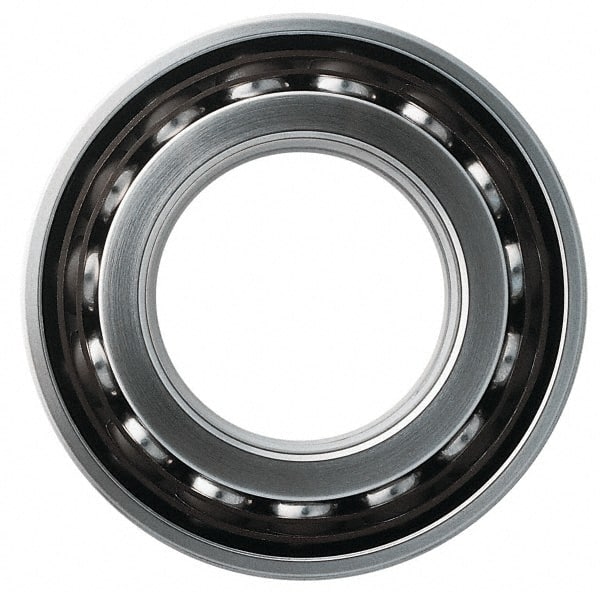

Angular Contact Ball Bearing: 90 mm Bore Dia, 160 mm OD, 52.4 mm OAW, Without Flange 30 ° Contact Angle, 120,000 lb Static Load, 130,000 lb Dynamic Load
Item #: 45672888
Brand: SKF
Model #: 3218 A-2Z
Product Specifications
| Bore Type | Round |
| Type | Angular Contact |
| Bore Diameter (mm) | 90.00 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 6.3000 |
| Outside Diameter | 160.00 |
| Dynamic Load Capacity (Lb.) | 130000 |
| Style | Double Shield |
| Static Load Capacity | 120000 |
| Maximum RPM | 2400 |
| Snap Ring Included | No |
| Flange Type | Without Flange |
| Contact Angle | 30 |
| Width (Mm - 2 Decimals) | 52.40 |
| Width (Decimal Inch - 4 Decimals) | 2.0600 |
| Number Of Rows | 2 |
