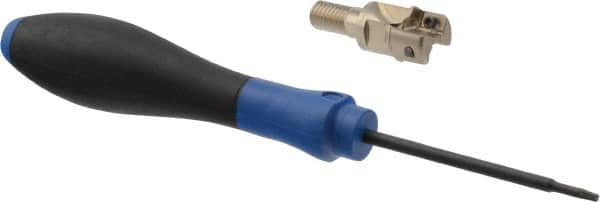

Seco - 5/8" Cut Diam, 0.157" Max Depth of Cut, 0.906" OAL, Indexable Square Shoulder End Mill - XOEX, XOMX Inserts, M8 Modular Connection, 90° Lead Angle, Through Coolant, Series Turbo 10
Item #: 45712304
Brand: Seco
Model #: 68441
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Cutting Diameter (Inch) | 5/8 |
| Shank Type | Modular Connection |
| Modular Connection Size | M8 |
| Overall Length/Projection (Decimal Inch) | 0.9060 |
| Lead Angle | 90 |
| Series | Turbo 10 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R217.69-10 |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Decimal Inch) | 0.6250 |
| Head Length (Decimal Inch) | 0.9060 |
| Weldon Flat | No |
| Insert Compatibility | XOEX; XOMX |
| Maximum RPM | 29400 |
| Toolholder Material | Steel |
