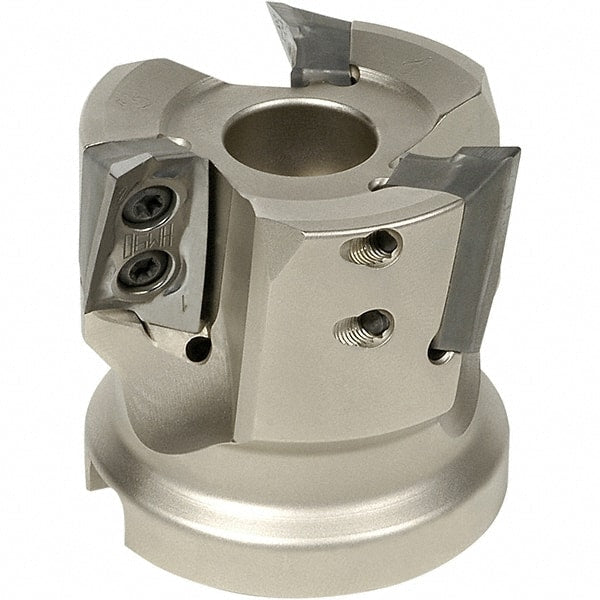

Iscar - 6 Inserts, 3" Cut Diam, 0.709" Arbor Diam, 0.709" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 2" High, HP AD.. 1906 Insert Compatibility, Series Heliplus
Item #: 45757564
Brand: Iscar
Model #: 3104329
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Decimal Inch) | 0.7090 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | HP AD.. 1906 |
| Series | Heliplus |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.7090 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | HP F90AT-19 |
| Number of Flutes | 6 |
| Cutting Edge Length (Decimal Inch) | 0.7090 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |
| Complete Insert Compatibility | HP ADCR 1906; HP ADKT/ADCT 1906 |
