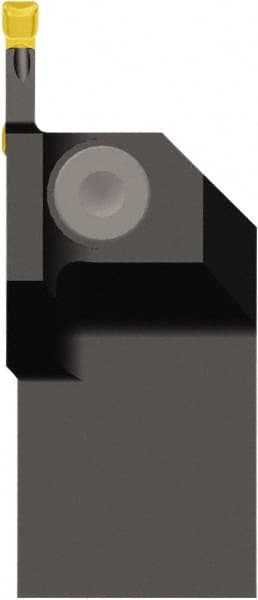

Seco - CFI, Left Hand Cut, 3/4" Shank Height x 3/4" Shank Width, Indexable Turning Toolholder - 4-1/2" OAL, LC..1604.. Insert Compatibility, Series Jetstream
Item #: 45772100
Brand: Seco
Model #: 37825
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | CFI |
| Series | Jetstream |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 4.5000 |
| Insert Compatibility | LC..1604.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8000 |
| Head Length (Decimal Inch) | 1.5400 |
| Insert Width (mm) | 3.99 |
| Insert Width (Decimal Inch) | 0.1570 |
