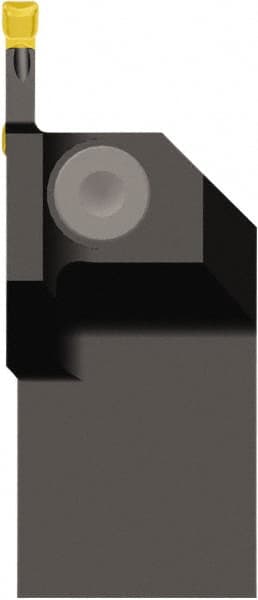

Seco - CFI, Left Hand Cut, 1-1/4" Shank Height x 1-1/4" Shank Width, Indexable Turning Toolholder - 7" OAL, LC..3008.. Insert Compatibility, Series Jetstream
Item #: 45772688
Brand: Seco
Model #: 43644
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | CFI |
| Series | Jetstream |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 7.0000 |
| Insert Compatibility | LC..3008.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.3700 |
| Head Length (Decimal Inch) | 2.2400 |
| Insert Width (mm) | 8.00 |
| Insert Width (Decimal Inch) | 0.3150 |
