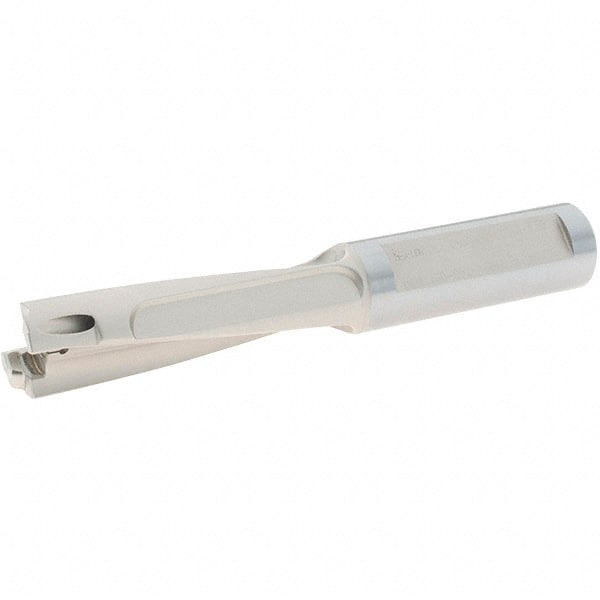

Iscar - 16 to 16.9mm Diam, 3.5xD, 52mm Max Depth, 16mm Shank Diam, 115mm OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, 16 Seat Size, DCM Toolholder, Series UniChamDrill
Item #: 45784899
Brand: Iscar
Model #: 3200984
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | UniChamDrill |
| Minimum Drill Diameter (mm) | 16.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6300 |
| Maximum Drill Diameter (mm) | 16.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.6654 |
| Drill Depth by Diameter Ratio | 3.5xD |
| Maximum Drill Depth (Decimal Inch) | 2.0472 |
| Maximum Drill Depth (mm) | 52.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Insert Style | IDI-SG; IDI-SK |
| Insert Seat Size | 16 |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 67.00 |
| Body Length (Decimal Inch) | 2.6378 |
| Overall Length (mm) | 115.00 |
| Overall Length (Decimal Inch) | 4.5276 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
