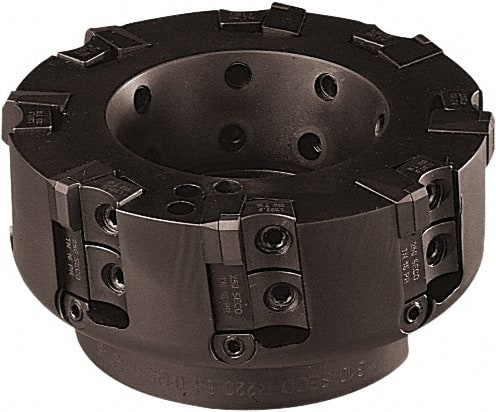

Seco - 5 Inserts, 80mm Cut Diam, 27mm Arbor Diam, 14mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 63mm High, TNGN 1604 Insert Compatibility
Item #: 45812831
Brand: Seco
Model #: 63812
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 90 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | TNGN 1604 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 14.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutting Rake Angle | -6 |
| Rake | Negative |
| Hub Diameter (mm) | 62.00 |
| Hub Diameter (Decimal Inch) | 2.4409 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Maximum RPM | 9600 |
| Complete Insert Compatibility | TNGN 1604PNE; TNGN 1604PNS; TNGN 1604PRS |
