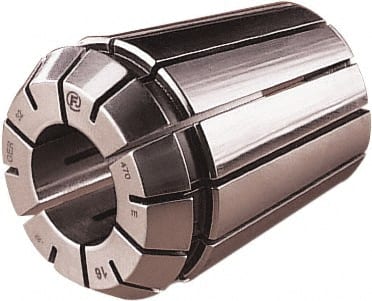

Seco - 12mm ER40 Collet - 0.01mm TIR, 46mm OAL, 41mm Overall Diam
Item #: 45847605
Brand: Seco
Model #: 42119
Exact Tooling IR#: 04
Features and Benefits
ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
| Product Specifications | |
|---|---|
| Type | ER Collet |
| Collet Series | ER40 |
| Size Range (mm) | 12.00 |
| Size (Decimal Inch) | 0.4724 |
| TIR (mm) | 0.0100 |
| TIR (Decimal Inch) | 0.000394 |
| Maximum Collet Capacity (mm) | 12.00 |
| Overall Length (mm) | 46.00 |
| Overall Length (Decimal Inch) | 1.8110 |
| Overall Diameter (mm) | 41.00 |
| Overall Diameter (Decimal Inch) | 1.6142 |
| PSC Code | 5136 |
