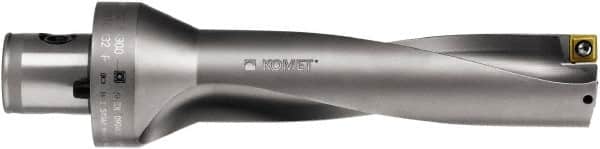

Komet - 1.654" Max Drill Depth, 2xD, 13/16" Diam, Indexable Insert Drill - 2 Inserts, ABS 50 Modular Connection Shank
Item #: 45860491
Brand: Komet
Model #: U1072060
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | U10 |
| Drill Diameter (Inch) | 13/16 |
| Drill Diameter (Decimal Inch) | 0.8125 |
| Maximum Drill Depth (Decimal Inch) | 1.6540 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 50 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.8310 |
| Overall Length/Projection (Decimal Inch) | 3.0310 |
| Insert Compatibility | SOEX 060306 |
| Body Length (Decimal Inch) | 3.0310 |
| Series | KUB Quatron |
