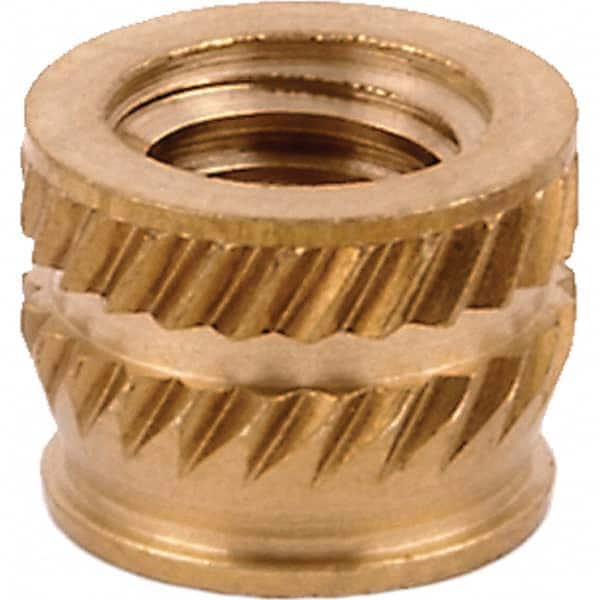

E-Z LOK - Tapered Hole Threaded Inserts Type: Single Vane System of Measurement: Metric
Item #: 61828398
Brand: E-Z LOK
Model #: TH-M50-SV
Features and Benefits
Single vane inserts have one extruding lip, called a vane, along the lower outer shaft of the insert.
Product Specifications
Tapered Hole Threaded Inserts; Type: Single Vane ; System of Measurement: Metric ; Thread Size (mm): M5x0.8 ; Overall Length (Decimal Inch): 0.2650 ; Insert Diameter (Decimal Inch): 0.3280 ; Pilot Diameter (Decimal Inch): 0.3080
| Type | Single Vane |
| System of Measurement | Metric |
| Thread Size (mm) | M5x0.8 |
| Overall Length (Decimal Inch) | 0.2650 |
| Insert Diameter (Decimal Inch) | 0.3280 |
| Pilot Diameter (Decimal Inch) | 0.3080 |
| Small End Hole Diameter (Decimal Inch) | 0.3150 |
| Large End Hole Diameter (Decimal Inch) | 0.3030 |
| Minimum Wall Thickness (Decimal Inch) | 0.1710 |
