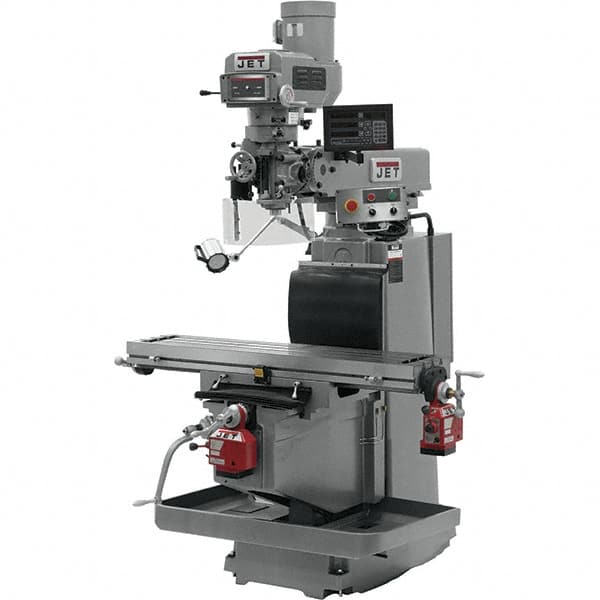

Jet - 54" Table Width x 12" Table Length, Variable Speed Pulley Control, 3 Phase Knee Milling Machine - R8 Spindle Taper, 5 hp - Exact Tooling

Jet - 54" Table Width x 12" Table Length, Variable Speed Pulley Control, 3 Phase Knee Milling Machine - R8 Spindle Taper, 5 hp


Item #: 46044160
Brand: Jet
Model #: 698134
Exact Tooling IR#: 04

Features and Benefits

Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
Product Specifications
Spindle Speed Control Variable Speed Pulley
Table Length (Inch) 12
Table Width (Inch) 54
Phase 3
Longitudinal Travel (Decimal Inch) 33.8750
Cross Travel (Decimal Inch) 15.3333
Knee Travel (Decimal Inch) 19.2500
Maximum Spindle Speed (RPM) 3800.00
Minimum Spindle Speed (RPM) 80.00
Includes 3-Axis Newall DP700 (Knee) DRO System; X and Y-Axis Powerfeeds
Spindle Travel Length (Inch) 5
Spindle Taper Size R8
Quill Diameter (Inch) 4-1/8
Maximum Spindle to Table Distance (Inch) 23
Maximum Spindle To Column Distance (Inch) 27-3/4
Table Load Capacity (Lb.) 925.00
Number of T-Slots 3
Left-Hand Head Tilt (Degrees) 45.00
Right-Hand Head Tilt (Degrees) 90.00
Ram Travel Length (Inch) 25
Horsepower (HP) 5.00
Voltage 230/460
