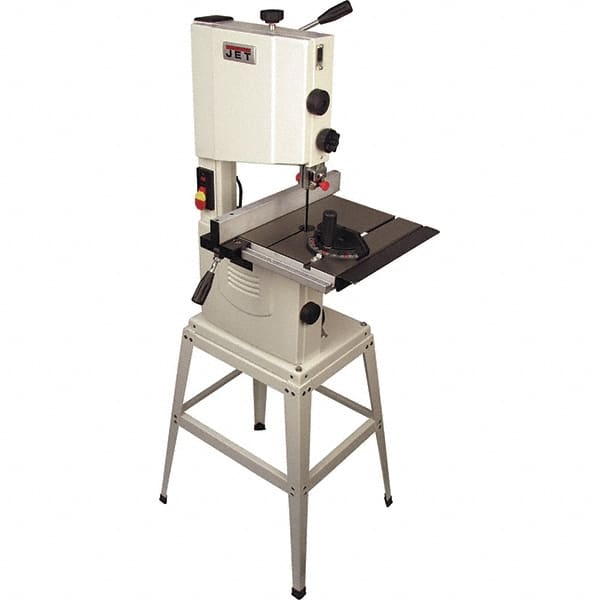

Jet - 10" Open Stand Bandsaw - 9-1/2" x 4-1/8" Cutting Capacity
Item #: 46049490
Brand: Jet
Model #: 714000
Exact Tooling IR#: 04
Features and Benefits
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Drive Type | Poly V |
| Throat Capacity (Inch) | 9-1/2 |
| Height Capacity (Inch) | 4-1/8 |
| Phase | 1 |
| Blade Width (Inch) | 1/8 to 1/2 |
| Blade Speeds (SFPM) | 2750 |
| Blade Length (Inch) | 67-1/2 |
| Blade Thickness (Decimal Inch) | 0.0320 |
| Blade Thickness (Inch) | 1/8 to 1/2 |
| Blade Wheel Diameter (Inch) | 10 |
| Table Length (Inch) | 13-1/8 |
| Table Width (Inch) | 13-3/8 |
| Floor to Table Height (Inch) | 41-1/2 |
| Table Tilt Right (Degrees) | 45.00 |
| Horsepower (HP) | 0.50 |
| Voltage | 115 |
| Overall Height (Inch) | 59-1/2 |
| Warranty | 5-Year |
