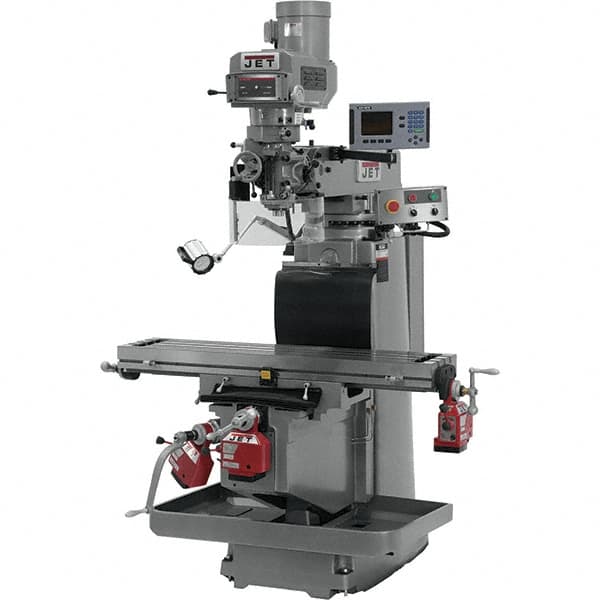

Jet - 54" Table Width x 12" Table Length, Electronic Variable Speed Control, 3 Phase Knee Milling Machine - R8 Spindle Taper, 5 hp
Item #: 46050134
Brand: Jet
Model #: 698124
Exact Tooling IR#: 04
Features and Benefits
Electronic Variable Speed control (EVS, are similar to variable speed pulleys, but the speed is controlled electronically rather than manually by turning a dial. They feature several speeds within a specified speed range.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Electronic Variable Speed |
| Table Length (Inch) | 12 |
| Table Width (Inch) | 54 |
| Phase | 3 |
| Longitudinal Travel (Decimal Inch) | 33.8750 |
| Cross Travel (Decimal Inch) | 15.3333 |
| Knee Travel (Decimal Inch) | 19.2500 |
| Maximum Spindle Speed (RPM) | 3800.00 |
| Minimum Spindle Speed (RPM) | 80.00 |
| Includes | 3-Axis Acu-Rite 200S (Quill) DRO System; X, Y and Z-Axis Powerfeeds |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Taper Size | R8 |
| Quill Diameter (Inch) | 4-1/8 |
| Maximum Spindle to Table Distance (Inch) | 23 |
| Minimum Spindle to Column Distance (Inch) | 27-3/4 |
| Table Load Capacity (Lb.) | 925.00 |
| Ram Travel Length (Inch) | 25 |
| Horsepower (HP) | 5.00 |
| Voltage | 230/460 |
