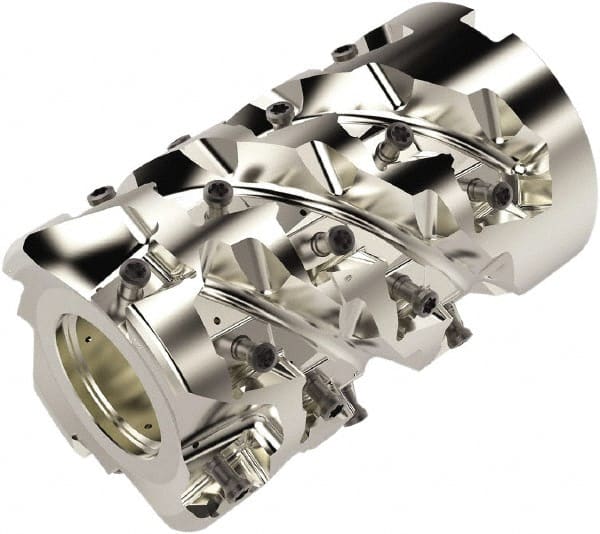

Seco - 28 Inserts, 2-1/2" Cut Diam, 1" Arbor Diam, 3.18" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 163mm High, LOEX12.. Insert Compatibility, Through Coolant, Series Square T4-12
Item #: 46108486
Brand: Seco
Model #: 03169706
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2-1/2 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Inch) | 1 |
| Lead Angle | 90 |
| Overall Height (mm) | 163.00 |
| Insert Compatibility | LOEX12.. |
| Series | Square T4-12 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 3.1800 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 28 |
| Insert Holding Method | Screw |
| Cutter Style | R220.94 |
| Number of Flutes | 4 |
| Hub Diameter (Decimal Inch) | 2.3600 |
| Keyway Width (Decimal Inch) | 0.5100 |
| Keyway Depth (Decimal Inch) | 0.2810 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 8800 |
| Pitch | Normal |
| Cutting Edge Length (Decimal Inch) | 0.4720 |
| Minimum Insert Radius (Decimal Inch) | 0.0313 |
| Toolholder Material | Steel |
