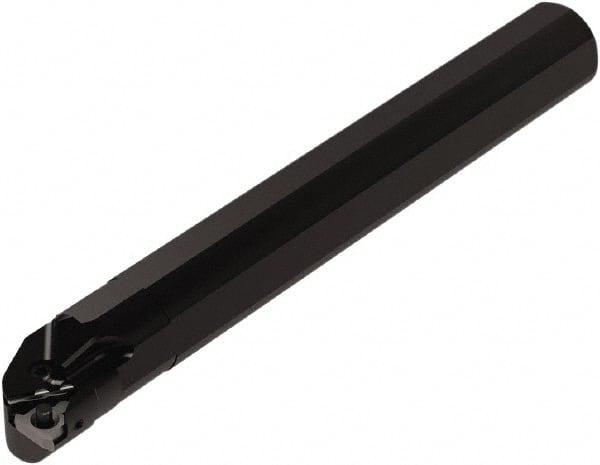

Seco - Internal Thread, Left Hand Cut, 0.91" Shank Width x 0.95" Shank Height Indexable Threading Toolholder - 7.87" OAL, 16NR Insert Compatibility, PNL Toolholder, Series Snap Tap
Item #: 46153722
Brand: Seco
Model #: 03006933
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 0.9100 |
| Shank Height (Decimal Inch) | 0.9500 |
| Overall Length (Decimal Inch) | 7.8700 |
| Insert Compatibility | 16NR |
| Series | Snap Tap |
| Toolholder Style | PNL |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Lever Lock |
| Back of Bar to Cutting Edge (mm) | 29.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Head Length (mm) | 42.00 |
| Shank Length (Decimal Inch) | 6.2200 |
