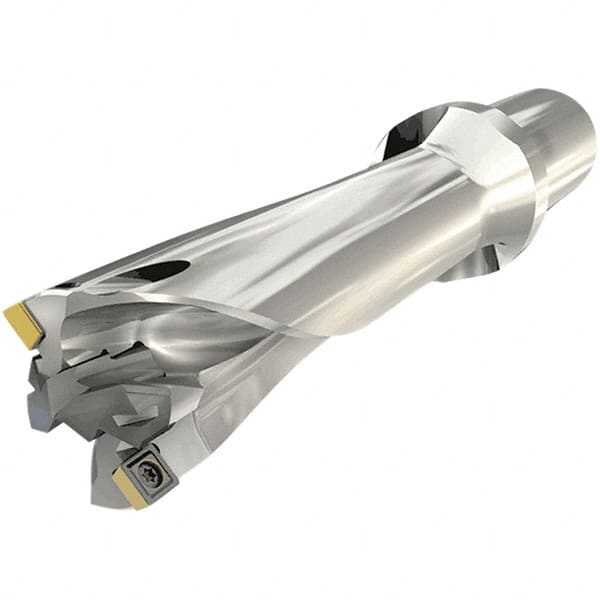

Iscar - 6.5 to 6.9mm Diam, 21mm Max Drill Depth, 12mm Shank Diam, 88.8mm OAL, Replaceable Tip Drill - AOMT, FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 6.5 Seat Size, DCNT Toolholder, Series Pre-Thread
Item #: 46655767
Brand: Iscar
Model #: 3260255
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Pre-Thread |
| Minimum Drill Diameter (mm) | 6.50 |
| Maximum Drill Diameter (mm) | 6.90 |
| Maximum Drill Depth (mm) | 21.00 |
| Shank Diameter (mm) | 12.00 |
| Insert Style | AOMT; FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Insert Seat Size | 6.5 |
| Toolholder Style | DCNT |
| Tip Length (mm) | 1.24 |
| Flute Length (mm) | 21.00 |
| Body Length (mm) | 43.80 |
| Overall Length (mm) | 88.80 |
| Shank Length (mm) | 45.00 |
