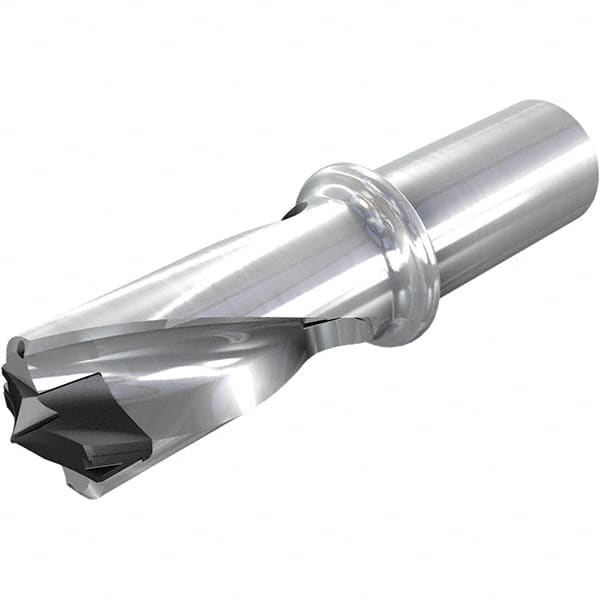

Iscar - 1-1/2 to 1-17/32" Diam, 8xD, 11.96" Max Drill Depth, 1-1/4" Shank Diam, 16.05" OAL, Replaceable Tip Drill - HFP-IQ Insert, 38 Seat Size, DFN Toolholder, Series ChamIOdrill
Item #: 46655817
Brand: Iscar
Model #: 3260027
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | ChamIOdrill |
| Minimum Drill Diameter (Decimal Inch) | 1.4960 |
| Maximum Drill Diameter (Decimal Inch) | 1.5310 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 11.9600 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | HFP-IQ |
| Insert Seat Size | 38 |
| Toolholder Style | DFN |
| Shank Type | Flat Shank |
| Tip Length (Decimal Inch) | 0.3230 |
| Flute Length (Decimal Inch) | 1.5310 |
| Body Length (Decimal Inch) | 13.6900 |
| Overall Length (Decimal Inch) | 16.0500 |
| Shank Length (Decimal Inch) | 2.3600 |
