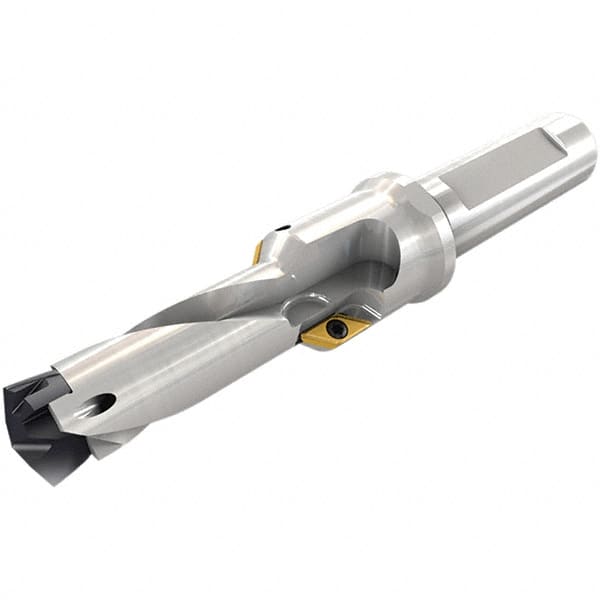

Iscar - 0.787 to 0.823" Diam, 1.65" Max Drill Depth, 1" Shank Diam, 5.28" OAL, Replaceable Tip Drill - AOMT, FCP, HCP-IQ, ICG, ICK, ICK-2M, ICM, ICP, iCP-2M, QCP-2M Insert, 20 Seat Size, DCNT Toolholder, Series Pre-Thread
Item #: 46655833
Brand: Iscar
Model #: 3203911
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Pre-Thread |
| Minimum Drill Diameter (Decimal Inch) | 0.7870 |
| Maximum Drill Diameter (Decimal Inch) | 0.8230 |
| Maximum Drill Depth (Decimal Inch) | 1.6500 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | AOMT; FCP; HCP-IQ; ICG; ICK; ICK-2M; ICM; ICP; iCP-2M; QCP-2M |
| Insert Seat Size | 20 |
| Toolholder Style | DCNT |
| Tip Length (Decimal Inch) | 0.1220 |
| Flute Length (Decimal Inch) | 1.6500 |
| Body Length (Decimal Inch) | 3.0800 |
| Overall Length (Decimal Inch) | 5.2800 |
| Shank Length (Decimal Inch) | 2.2000 |
