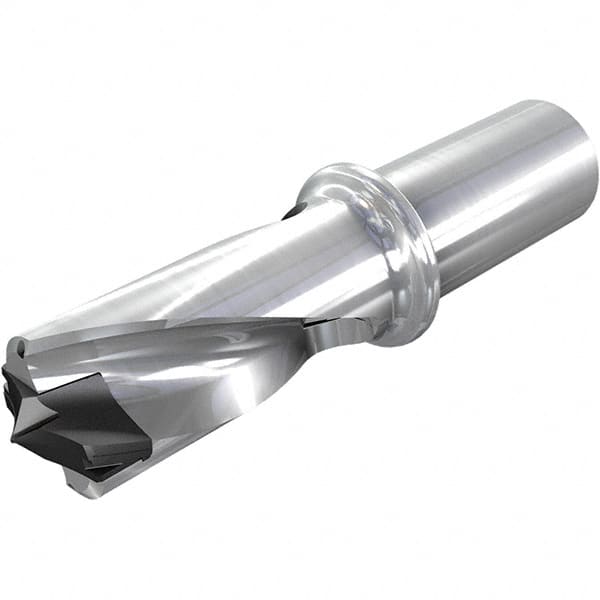

Iscar - 39 to 39.9mm Diam, 1.5xD, 59mm Max Drill Depth, 32mm Shank Diam, 163.4mm OAL, Replaceable Tip Drill - HFP-IQ Insert, 39 Seat Size, DFN Toolholder, Series ChamIOdrill
Item #: 46655973
Brand: Iscar
Model #: 3203631
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | ChamIOdrill |
| Minimum Drill Diameter (mm) | 39.00 |
| Maximum Drill Diameter (mm) | 39.90 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 59.00 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | HFP-IQ |
| Insert Seat Size | 39 |
| Toolholder Style | DFN |
| Shank Type | Flat Shank |
| Tip Length (mm) | 8.43 |
| Flute Length (mm) | 59.00 |
| Body Length (mm) | 103.40 |
| Overall Length (mm) | 163.40 |
| Shank Length (mm) | 60.00 |
