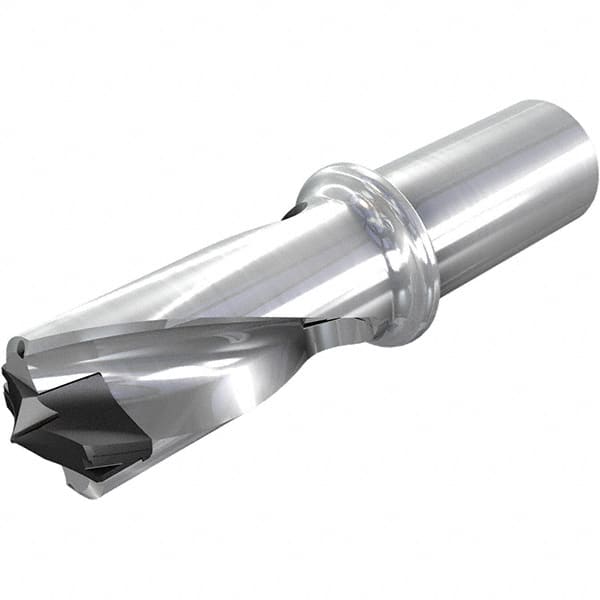

Iscar - 37 to 37.9mm Diam, 1.5xD, 56mm Max Drill Depth, 32mm Shank Diam, 158.1mm OAL, Replaceable Tip Drill - HFP-IQ Insert, 37 Seat Size, DFN Toolholder, Series ChamIOdrill
Item #: 46655999
Brand: Iscar
Model #: 3203619
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | ChamIOdrill |
| Minimum Drill Diameter (mm) | 37.00 |
| Maximum Drill Diameter (mm) | 37.90 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 56.00 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | HFP-IQ |
| Insert Seat Size | 37 |
| Toolholder Style | DFN |
| Shank Type | Flat Shank |
| Tip Length (mm) | 8.04 |
| Flute Length (mm) | 56.00 |
| Body Length (mm) | 98.10 |
| Overall Length (mm) | 158.10 |
| Shank Length (mm) | 60.00 |
