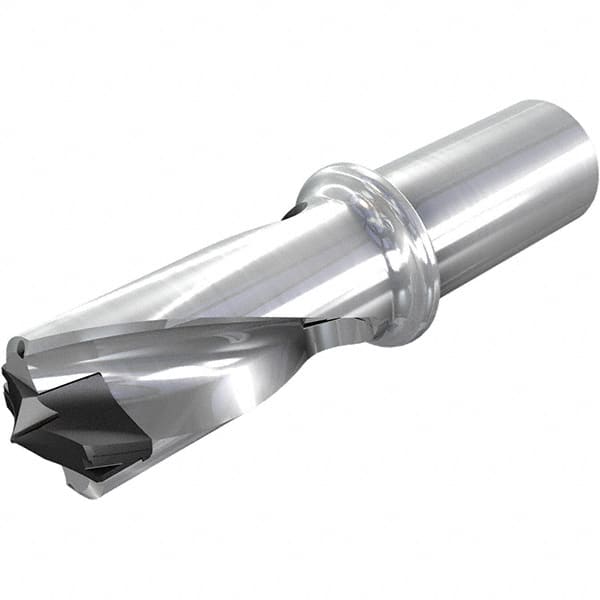

Iscar - 35 to 35.9mm Diam, 1.5xD, 53mm Max Drill Depth, 32mm Shank Diam, 152.8mm OAL, Replaceable Tip Drill - HFP-IQ Insert, 35 Seat Size, DFN Toolholder, Series ChamIOdrill
Item #: 46656039
Brand: Iscar
Model #: 3203607
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | ChamIOdrill |
| Minimum Drill Diameter (mm) | 35.00 |
| Maximum Drill Diameter (mm) | 35.90 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 53.00 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | HFP-IQ |
| Insert Seat Size | 35 |
| Toolholder Style | DFN |
| Shank Type | Flat Shank |
| Tip Length (mm) | 7.65 |
| Flute Length (mm) | 53.00 |
| Body Length (mm) | 92.80 |
| Overall Length (mm) | 152.80 |
| Shank Length (mm) | 60.00 |
