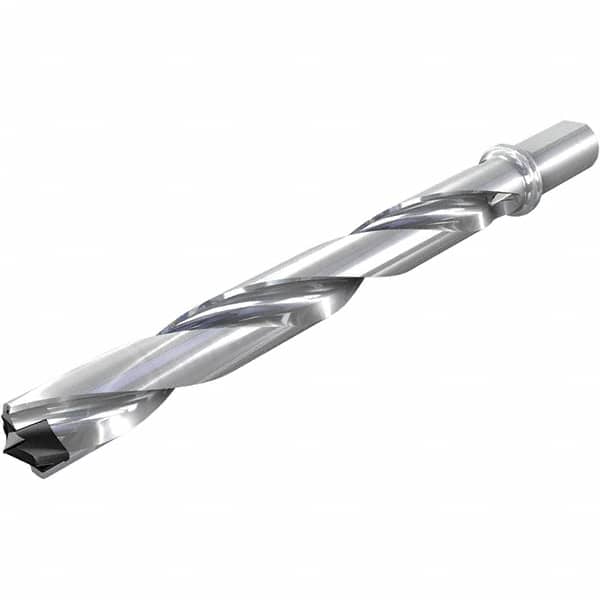

Iscar - 34 to 34.9mm Diam, 8xD, 272mm Max Drill Depth, 32mm Shank Diam, 371.2mm OAL, Replaceable Tip Drill - HFP-IQ Insert, 34 Seat Size, DFN Toolholder, Series ChamIOdrill
Item #: 46656047
Brand: Iscar
Model #: 3203603
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | ChamIOdrill |
| Minimum Drill Diameter (mm) | 34.00 |
| Maximum Drill Diameter (mm) | 34.90 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 272.00 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | HFP-IQ |
| Insert Seat Size | 34 |
| Toolholder Style | DFN |
| Shank Type | Flat Shank |
| Tip Length (mm) | 7.62 |
| Flute Length (mm) | 272.00 |
| Body Length (mm) | 311.20 |
| Overall Length (mm) | 371.20 |
| Shank Length (mm) | 60.00 |
