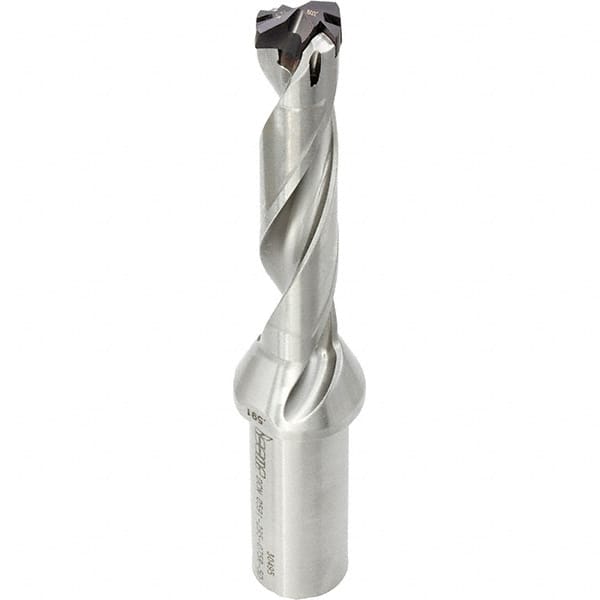

Iscar - 6.5 to 6.9mm Diam, 8xD, 53.2mm Max Drill Depth, 12mm Shank Diam, 111.3mm OAL, Replaceable Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 6.5 Seat Size, DCN Toolholder, Series SumoCham
Item #: 46656203
Brand: Iscar
Model #: 3203276
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 6.50 |
| Maximum Drill Diameter (mm) | 6.90 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 53.20 |
| Shank Diameter (mm) | 12.00 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Insert Seat Size | 6.5 |
| Toolholder Style | DCN |
| Shank Type | Flat Shank |
| Tip Length (mm) | 1.18 |
| Flute Length (mm) | 53.20 |
| Body Length (mm) | 66.30 |
| Overall Length (mm) | 111.30 |
| Shank Length (mm) | 45.00 |
