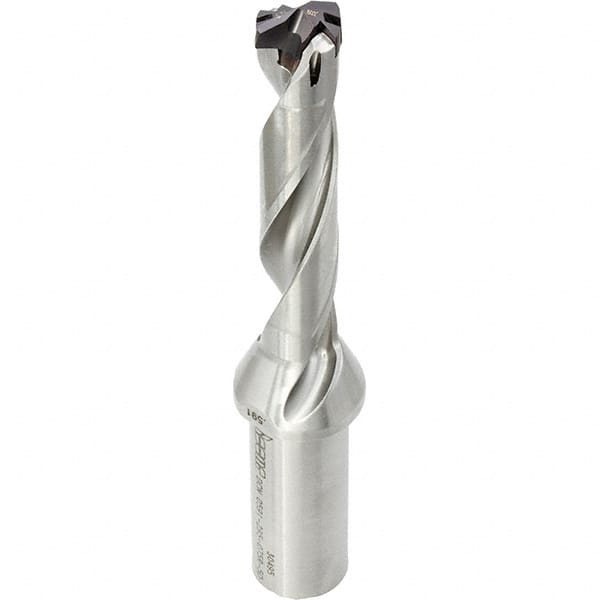

Iscar - 1.102 to 1.138" Diam, 8xD, 9.02" Max Drill Depth, 1-1/4" Shank Diam, 12.92" OAL, Replaceable Tip Drill - HCP-IQ, ICK, ICM, ICP Insert, 28 Seat Size, DCN Toolholder, Series SumoCham
Item #: 46656211
Brand: Iscar
Model #: 3203232
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 1.1020 |
| Maximum Drill Diameter (Decimal Inch) | 1.1380 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 9.0200 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | HCP-IQ; ICK; ICM; ICP |
| Insert Seat Size | 28 |
| Toolholder Style | DCN |
| Shank Type | Cylindrical Shank |
| Tip Length (Decimal Inch) | 0.2010 |
| Flute Length (Decimal Inch) | 1.1380 |
| Body Length (Decimal Inch) | 10.5600 |
| Overall Length (Decimal Inch) | 12.9200 |
| Shank Length (Decimal Inch) | 2.3600 |
