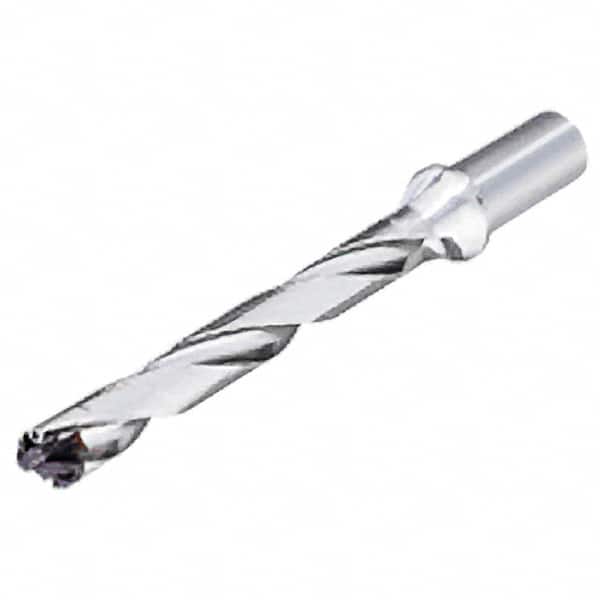

Iscar - 29 to 29.9mm Diam, 8xD, 237.3mm Max Drill Depth, 32mm Shank Diam, 337.8mm OAL, Replaceable Tip Drill - HCP-IQ, ICK, ICM, ICP Insert, 29 Seat Size, DCN Toolholder, Series SumoCham
Item #: 46656229
Brand: Iscar
Model #: 3203226
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 29.00 |
| Maximum Drill Diameter (mm) | 29.90 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 237.30 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | HCP-IQ; ICK; ICM; ICP |
| Insert Seat Size | 29 |
| Toolholder Style | DCN |
| Shank Type | Cylindrical Shank |
| Tip Length (mm) | 5.28 |
| Flute Length (mm) | 237.30 |
| Body Length (mm) | 277.80 |
| Overall Length (mm) | 337.80 |
| Shank Length (mm) | 60.00 |
