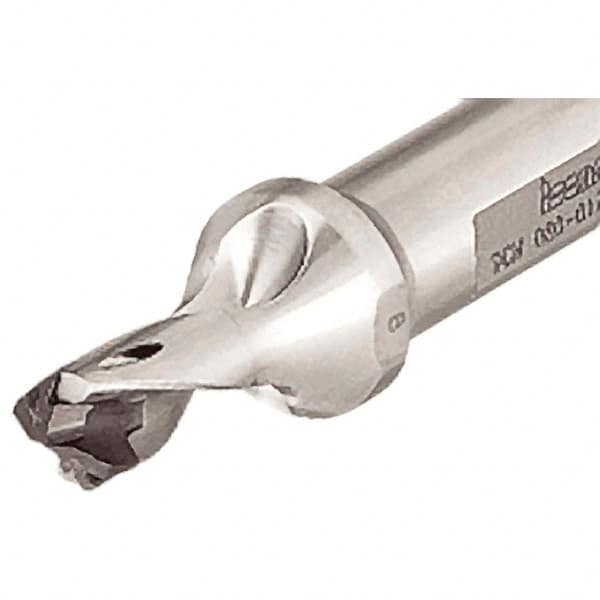

Iscar - 29 to 29.9mm Diam, 1.5xD, 49.3mm Max Drill Depth, 32mm Shank Diam, 149.3mm OAL, Replaceable Tip Drill - HCP-IQ, ICK, ICM, ICP Insert, 29 Seat Size, DCN Toolholder, Series SumoCham
Item #: 46656237
Brand: Iscar
Model #: 3203223
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 29.00 |
| Maximum Drill Diameter (mm) | 29.90 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 49.30 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | HCP-IQ; ICK; ICM; ICP |
| Insert Seat Size | 29 |
| Toolholder Style | DCN |
| Shank Type | Flat Shank |
| Tip Length (mm) | 5.28 |
| Flute Length (mm) | 49.30 |
| Body Length (mm) | 89.30 |
| Overall Length (mm) | 149.30 |
| Shank Length (mm) | 60.00 |
