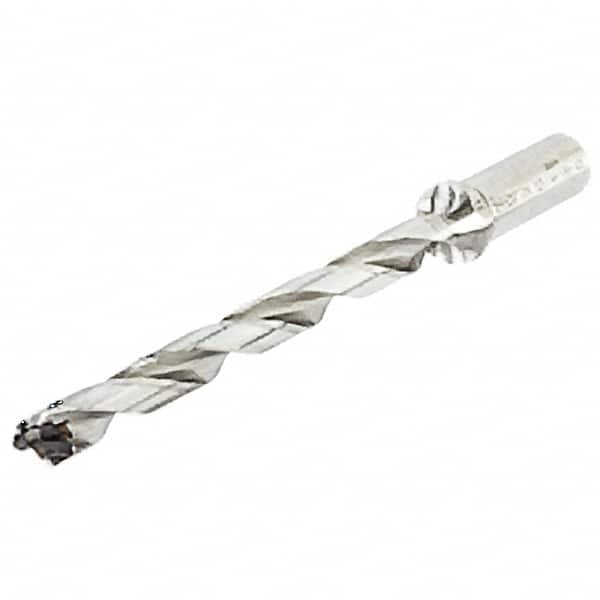

Iscar - 10 to 10.4mm Diam, 12xD, 121.8mm Max Drill Depth, 16mm Shank Diam, 184.2mm OAL, Replaceable Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M, QCP-2M Insert, 10 Seat Size, DCN Toolholder, Series SumoCham
Item #: 46656450
Brand: Iscar
Model #: 3202844
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 10.00 |
| Maximum Drill Diameter (mm) | 10.40 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (mm) | 121.80 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M; QCP-2M |
| Insert Seat Size | 10 |
| Toolholder Style | DCN |
| Shank Type | Cylindrical Shank |
| Tip Length (mm) | 1.82 |
| Flute Length (mm) | 121.80 |
| Body Length (mm) | 136.20 |
| Overall Length (mm) | 184.20 |
| Shank Length (mm) | 48.00 |
