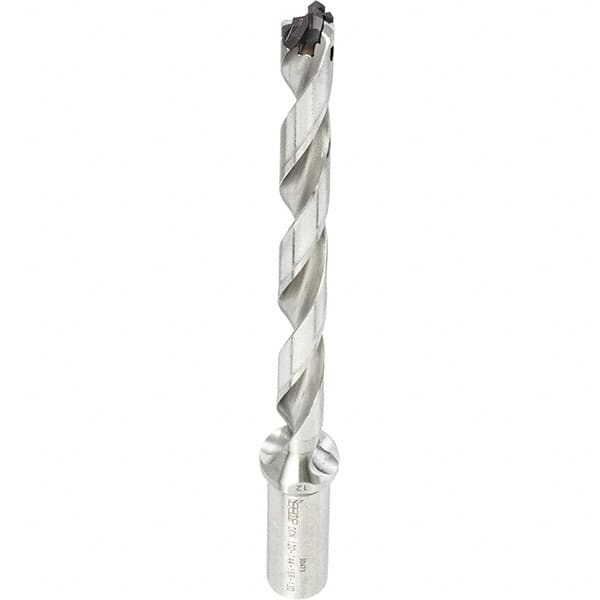

Iscar - 8 to 8.4mm Diam, 12xD, 97.5mm Max Drill Depth, 12mm Shank Diam, 156.4mm OAL, Replaceable Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M, QCP-2M Insert, 8 Seat Size, DCN Toolholder, Series SumoCham
Item #: 46656476
Brand: Iscar
Model #: 3202842
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 8.00 |
| Maximum Drill Diameter (mm) | 8.40 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (mm) | 97.50 |
| Shank Diameter (mm) | 12.00 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M; QCP-2M |
| Insert Seat Size | 8 |
| Toolholder Style | DCN |
| Shank Type | Cylindrical Shank |
| Tip Length (mm) | 1.46 |
| Flute Length (mm) | 97.50 |
| Body Length (mm) | 111.40 |
| Overall Length (mm) | 156.40 |
| Shank Length (mm) | 45.00 |
