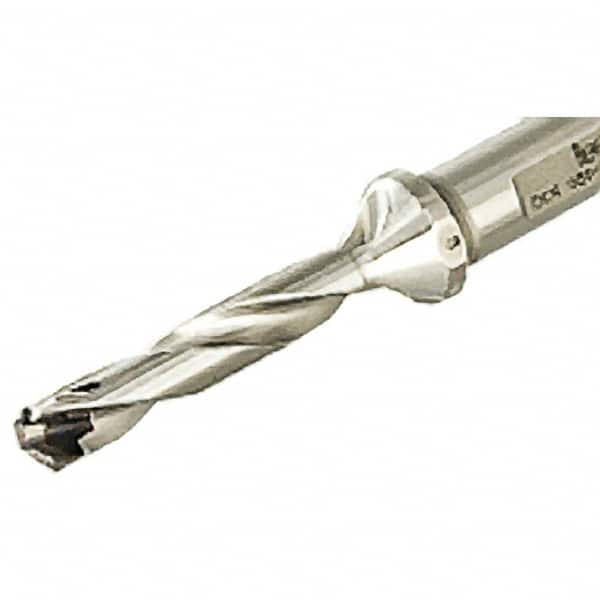

Iscar - 26 to 26.9mm Diam, 8xD, 212.7mm Max Drill Depth, 32mm Shank Diam, 309.3mm OAL, Replaceable Tip Drill - HCP-IQ, ICK, ICM, ICP Insert, 26 Seat Size, DCN Toolholder, Series SumoCham
Item #: 46658159
Brand: Iscar
Model #: 3203112
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 26.00 |
| Maximum Drill Diameter (mm) | 26.90 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 212.70 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | HCP-IQ; ICK; ICM; ICP |
| Insert Seat Size | 26 |
| Toolholder Style | DCN |
| Shank Type | Flat Shank |
| Tip Length (mm) | 4.73 |
| Flute Length (mm) | 212.70 |
| Body Length (mm) | 249.30 |
| Overall Length (mm) | 309.30 |
| Shank Length (mm) | 60.00 |
