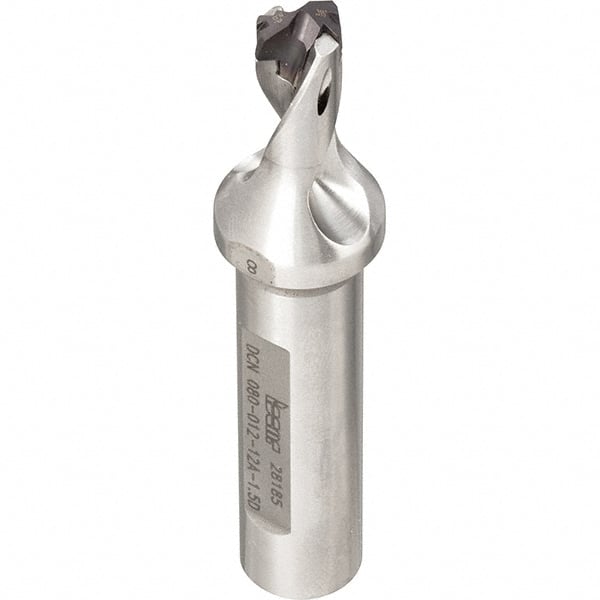

Iscar - 1.142 to 1.177" Diam, 1.5xD, 1.92" Max Drill Depth, 1-1/4" Shank Diam, 5.88" OAL, Replaceable Tip Drill - FCP, HCP-IQ, ICK, ICM, ICP Insert, 29 Seat Size, DCN Toolholder, Series SumoCham
Item #: 46658191
Brand: Iscar
Model #: 3203139
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 1.1420 |
| Maximum Drill Diameter (Decimal Inch) | 1.1770 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 1.9200 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | FCP; HCP-IQ; ICK; ICM; ICP |
| Insert Seat Size | 29 |
| Toolholder Style | DCN |
| Shank Type | Cylindrical Shank |
| Tip Length (Decimal Inch) | 0.2080 |
| Flute Length (Decimal Inch) | 1.1770 |
| Body Length (Decimal Inch) | 3.5200 |
| Overall Length (Decimal Inch) | 5.8800 |
| Shank Length (Decimal Inch) | 2.3600 |
