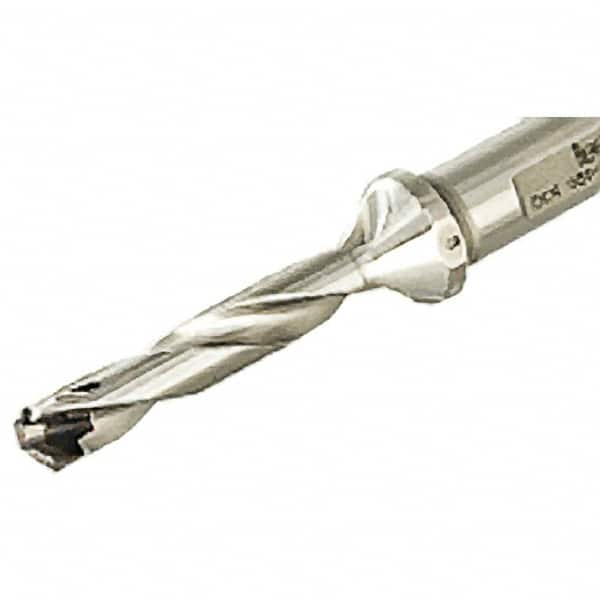

Iscar - 31 to 31.9mm Diam, 8xD, 253.6mm Max Drill Depth, 32mm Shank Diam, 357mm OAL, Replaceable Tip Drill - HCP-IQ, ICK, ICM, ICP Insert, 31 Seat Size, DCN Toolholder, Series SumoCham
Item #: 46658209
Brand: Iscar
Model #: 3203161
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 31.00 |
| Maximum Drill Diameter (mm) | 31.90 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 253.60 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | HCP-IQ; ICK; ICM; ICP |
| Insert Seat Size | 31 |
| Toolholder Style | DCN |
| Shank Type | Flat Shank |
| Tip Length (mm) | 5.64 |
| Flute Length (mm) | 253.60 |
| Body Length (mm) | 297.00 |
| Overall Length (mm) | 357.00 |
| Shank Length (mm) | 60.00 |
