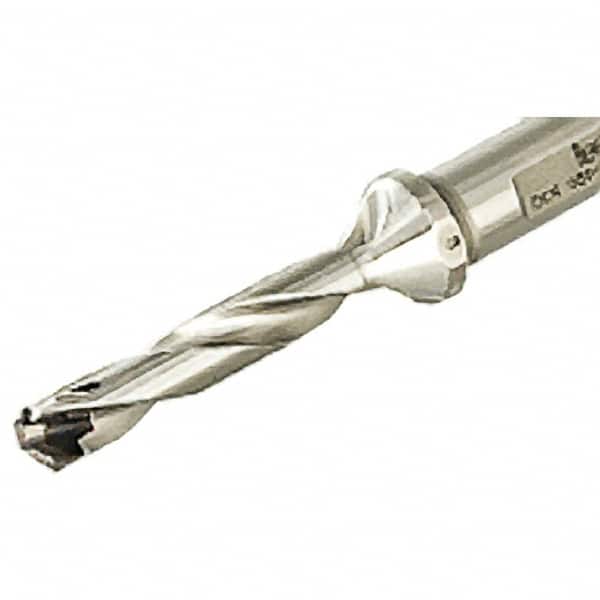

Iscar - 6 to 6.4mm Diam, 8xD, 49.1mm Max Drill Depth, 12mm Shank Diam, 107mm OAL, Replaceable Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 6 Seat Size, DCN Toolholder, Series SumoCham
Item #: 46658258
Brand: Iscar
Model #: 3203269
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 6.00 |
| Maximum Drill Diameter (mm) | 6.40 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 49.10 |
| Shank Diameter (mm) | 12.00 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Insert Seat Size | 6 |
| Toolholder Style | DCN |
| Shank Type | Flat Shank |
| Tip Length (mm) | 1.09 |
| Flute Length (mm) | 49.10 |
| Body Length (mm) | 62.00 |
| Overall Length (mm) | 107.00 |
| Shank Length (mm) | 45.00 |
