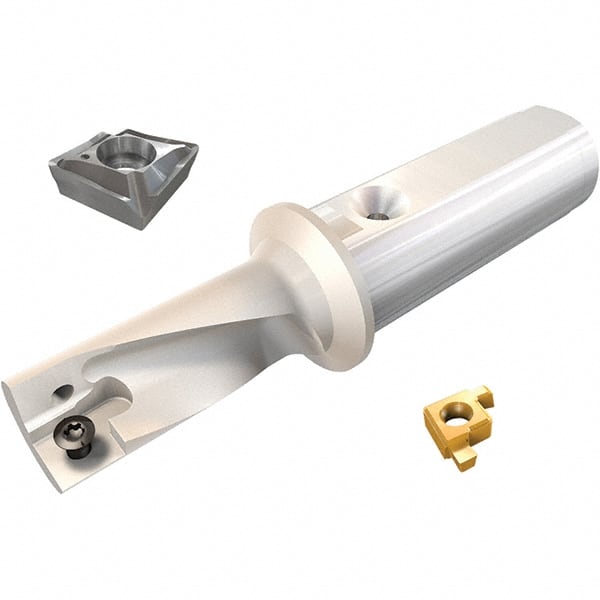

Iscar - 0.472" Max Diam, 2.25xD, 1.06" Max Drill Depth, 0.63" Shank Diam, 3.07" OAL, Replaceable Tip Drill - XCMT-MF, XCMT-MG Insert, DRG-MF Toolholder, Series DRG-MF
Item #: 46658399
Brand: Iscar
Model #: 3203773
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | DRG-MF |
| Maximum Drill Diameter (Decimal Inch) | 0.4720 |
| Drill Depth by Diameter Ratio | 2.25xD |
| Maximum Drill Depth (Decimal Inch) | 1.0600 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Insert Style | XCMT-MF; XCMT-MG |
| Toolholder Style | DRG-MF |
| Flute Length (Decimal Inch) | 1.0600 |
| Body Length (Decimal Inch) | 1.3000 |
| Overall Length (Decimal Inch) | 3.0700 |
| Shank Length (Decimal Inch) | 1.7700 |
