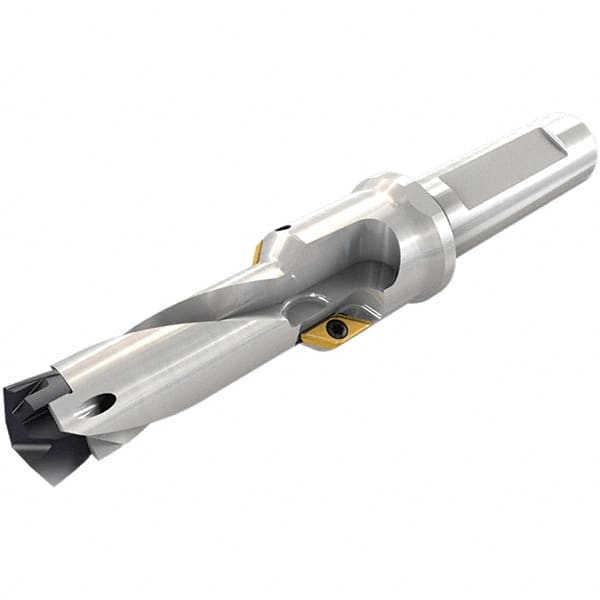

Iscar - 3/4 to 0.783" Diam, 1.65" Max Drill Depth, 1" Shank Diam, 5.21" OAL, Replaceable Tip Drill - AOMT, FCP, HCP-IQ, ICG, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M, QCP-2M Insert, 19 Seat Size, DCNT Toolholder, Series Pre-Thread
Item #: 46658472
Brand: Iscar
Model #: 3203910
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Pre-Thread |
| Minimum Drill Diameter (Decimal Inch) | 0.7480 |
| Maximum Drill Diameter (Decimal Inch) | 0.7830 |
| Maximum Drill Depth (Decimal Inch) | 1.6500 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | AOMT; FCP; HCP-IQ; ICG; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M; QCP-2M |
| Insert Seat Size | 19 |
| Toolholder Style | DCNT |
| Tip Length (Decimal Inch) | 0.1170 |
| Flute Length (Decimal Inch) | 1.6500 |
| Body Length (Decimal Inch) | 3.0100 |
| Overall Length (Decimal Inch) | 5.2100 |
| Shank Length (Decimal Inch) | 2.2000 |
