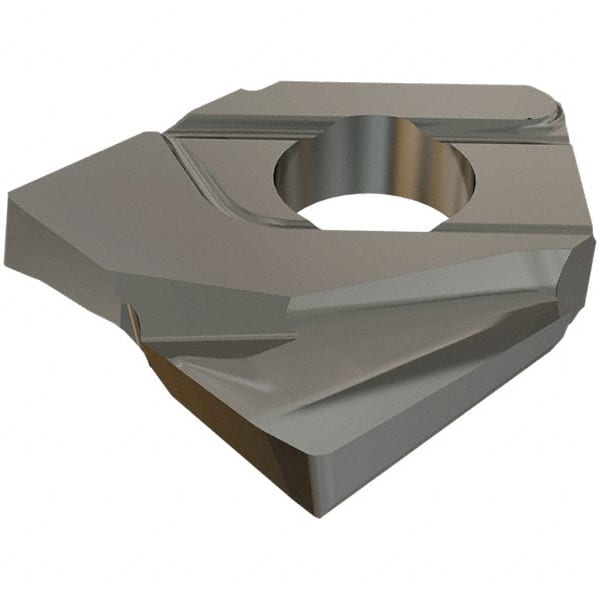

Iscar - HCCD120-R2.0 QF Grade IC908 Carbide Milling Insert - TiAlN Finish, 2.6mm Thick, 2mm Corner Radius
Item #: 46675203
Brand: Iscar
Model #: 5604821
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HCC |
| Insert Size | D120-R2.0 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Thickness (mm) | 2.60 |
| Corner Radius (mm) | 2.00 |
| Relief Angle | 7.000 |
| Coating Process | PVD |
| Shape | Hexagon |
| Insert Hand | Right Hand |
| Chipbreaker | QF |
| Maximum Depth of Cut (mm) | 8.10 |
| Manufacturers Catalog Number | HCC D120-R2.0-QF |
| ISO Number | HCC D120-R2.0-QF |
| ANSI Number | HCC D120-R2.0-QF |
