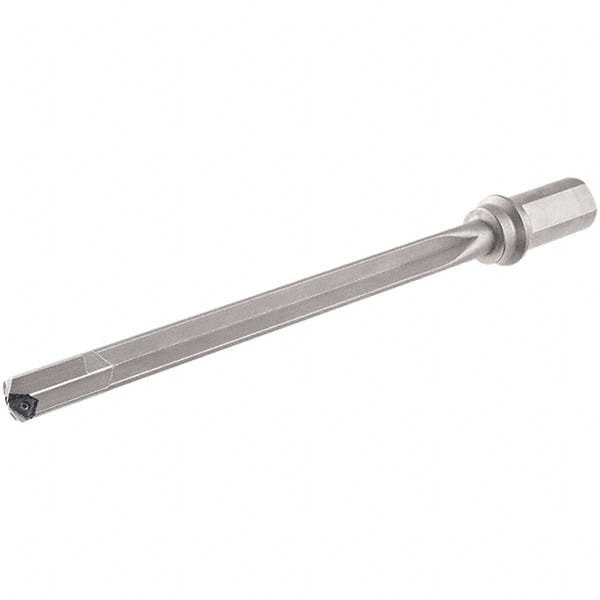

Iscar - 230mm Max Drill Depth, 10xD, 22mm Diam, Indexable Insert Drill - 1 Insert, 32mm Shank Diam, Weldon Flat Shank
Item #: 46680294
Brand: Iscar
Model #: 4834306
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | MCTR |
| Drill Diameter (mm) | 22.00 |
| Maximum Drill Depth (mm) | 230.00 |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 32.00 |
| Cutting Direction | Left Hand |
| Drill Depth by Diameter Ratio | 10xD |
| Insert Size (mm) | 3.40 |
| Number of Drill Inserts | 1 |
| Overall Length/Projection (mm) | 338.00 |
| Insert Compatibility | TOGT 11 |
| Flute Length (mm) | 278.00 |
| Body Length (mm) | 278.00 |
| Shank Length (mm) | 60.00 |
| Series | TriDeep |
