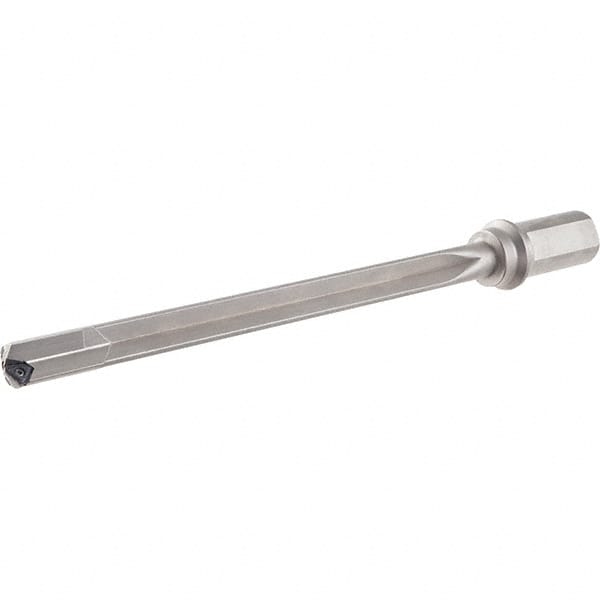

Iscar - 24.74" Max Drill Depth, 25xD, 0.937" Diam, Indexable Insert Drill - 1 Insert, 1-1/4" Shank Diam, Weldon Flat Shank
Item #: 46681433
Brand: Iscar
Model #: 4820517
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | MCTR |
| Drill Diameter (Decimal Inch) | 0.9370 |
| Maximum Drill Depth (Decimal Inch) | 24.7400 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Cutting Direction | Left Hand |
| Drill Depth by Diameter Ratio | 25xD |
| Insert Size (Decimal Inch) | 0.1330 |
| Number of Drill Inserts | 1 |
| Overall Length/Projection (Decimal Inch) | 28.9760 |
| Insert Compatibility | TOGT 11 |
| Flute Length (Decimal Inch) | 26.6140 |
| Body Length (Decimal Inch) | 26.6100 |
| Shank Length (Decimal Inch) | 2.3620 |
| Series | TriDeep |
