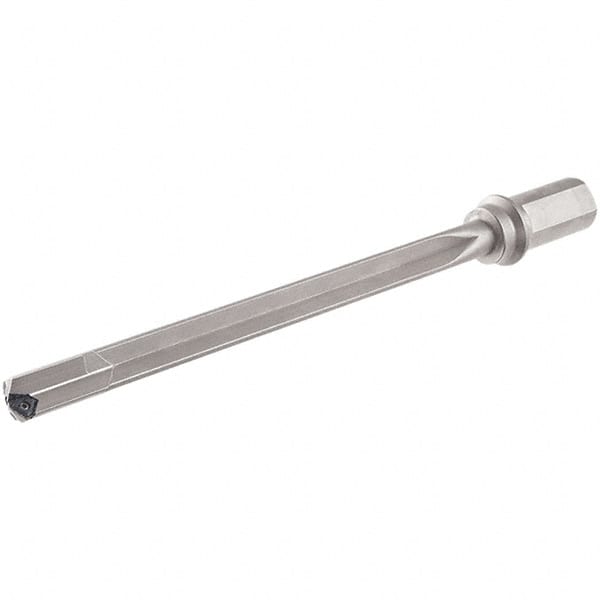

Iscar - 425mm Max Drill Depth, 25xD, 16.5mm Diam, Indexable Insert Drill - 1 Insert, 25mm Shank Diam, Straight Shank
Item #: 46683009
Brand: Iscar
Model #: 4812120
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | GD-DH |
| Drill Diameter (mm) | 16.50 |
| Maximum Drill Depth (mm) | 425.00 |
| Shank Type | Straight |
| Shank Diameter (mm) | 25.00 |
| Cutting Direction | Left Hand |
| Drill Depth by Diameter Ratio | 25xD |
| Insert Size (mm) | 2.20 |
| Number of Drill Inserts | 1 |
| Overall Length/Projection (mm) | 520.00 |
| Insert Compatibility | TOGT 08 |
| Flute Length (mm) | 425.00 |
| Body Length (mm) | 464.00 |
| Shank Length (mm) | 56.00 |
| Series | TriDeep |
