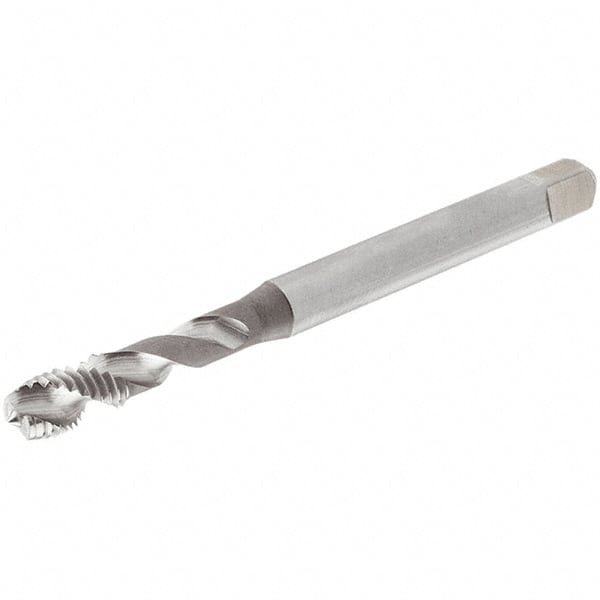

Iscar - M2.5x0.45 Metric Coarse 3 Flute 6H Plug Spiral Flute Tap - Cobalt, Oxide Finish, 50mm OAL, Right Hand Flute, Right Hand Thread, Series TPG M
Item #: 46688875
Brand: Iscar
Model #: 4445832
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Spiral flutes are constructed of a high flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M2.5x0.45 |
| Chamfer | Plug |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Material | Cobalt |
| Finish/Coating | Oxide |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 1.9690 |
| Overall Length (mm) | 50.00 |
| Thread Standard | Metric Coarse |
| Material Grade | M35 |
| Thread Length (Decimal Inch) | 0.3540 |
| Thread Length (mm) | 9.00 |
| Flute Type | Spiral |
| Series/List | TPG M |
| Neck Length (Decimal Inch) | 0.2360 |
| Tapping Depth (Decimal Inch) | 0.3540 |
| Tapping Depth (mm) | 9.00 |
| Shank Diameter (Decimal Inch) | 0.1100 |
| Shank Diameter (mm) | 2.80 |
| Shank Length (Decimal Inch) | 1.3790 |
| Shank Length (mm) | 35 |
| Material Application | Aluminum Alloy; Cast Iron; Hardened Steel; Low Alloy Steel; Stainless Steel; Steel |
