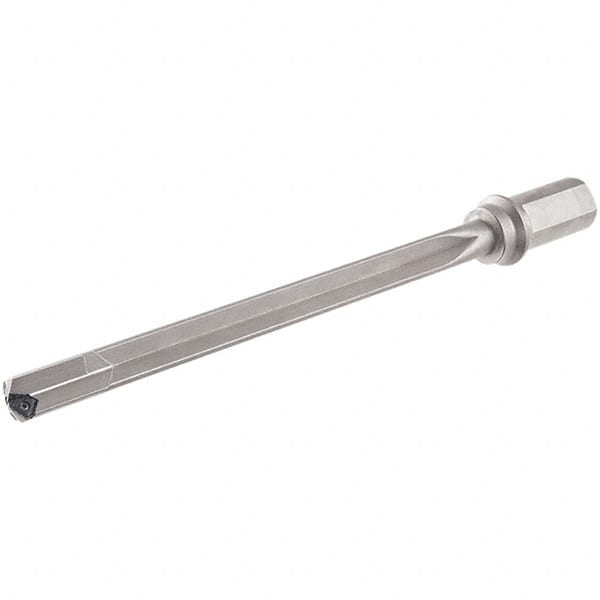

Iscar - 300mm Max Drill Depth, 20xD, 14.5mm Diam, Indexable Insert Drill - 1 Insert, 25mm Shank Diam, Straight Shank
Item #: 46691168
Brand: Iscar
Model #: 4803782
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | GD-DH |
| Drill Diameter (mm) | 14.50 |
| Maximum Drill Depth (mm) | 300.00 |
| Shank Type | Straight |
| Shank Diameter (mm) | 25.00 |
| Cutting Direction | Left Hand |
| Drill Depth by Diameter Ratio | 20xD |
| Insert Size (mm) | 1.95 |
| Number of Drill Inserts | 1 |
| Overall Length/Projection (mm) | 393.00 |
| Insert Compatibility | TOGT 07 |
| Flute Length (mm) | 300.00 |
| Body Length (mm) | 337.00 |
| Shank Length (mm) | 56.00 |
| Series | TriDeep |
