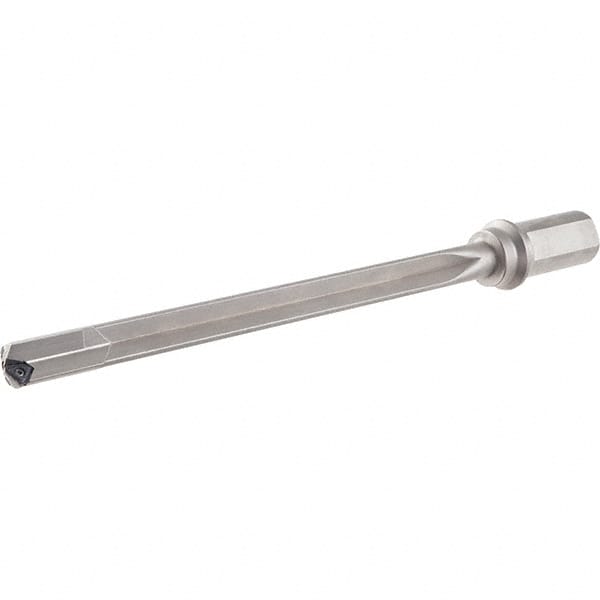

Iscar - 12.52" Max Drill Depth, 15xD, 0.785" Diam, Indexable Insert Drill - 1 Insert, 1-1/4" Shank Diam, Weldon Flat Shank
Item #: 46691986
Brand: Iscar
Model #: 4819604
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | MCTR |
| Drill Diameter (Decimal Inch) | 0.7850 |
| Maximum Drill Depth (Decimal Inch) | 12.5200 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Cutting Direction | Left Hand |
| Drill Depth by Diameter Ratio | 15xD |
| Insert Size (Decimal Inch) | 0.1180 |
| Number of Drill Inserts | 1 |
| Overall Length/Projection (Decimal Inch) | 16.5350 |
| Insert Compatibility | TOGT 09 |
| Flute Length (Decimal Inch) | 14.1730 |
| Body Length (Decimal Inch) | 14.1700 |
| Shank Length (Decimal Inch) | 2.3620 |
| Series | TriDeep |
