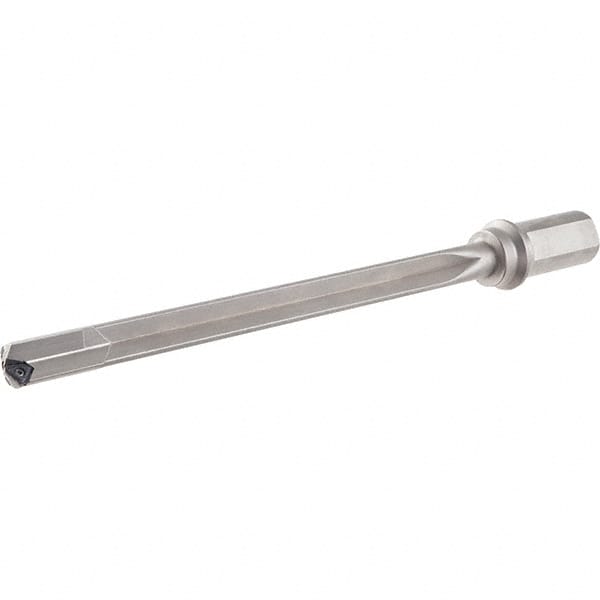

Iscar - 20.8" Max Drill Depth, 25xD, 0.81" Diam, Indexable Insert Drill - 1 Insert, 1-1/4" Shank Diam, Straight Shank
Item #: 46691994
Brand: Iscar
Model #: 4819612
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | GD-DH |
| Drill Diameter (Decimal Inch) | 0.8100 |
| Maximum Drill Depth (Decimal Inch) | 20.8000 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Cutting Direction | Left Hand |
| Drill Depth by Diameter Ratio | 25xD |
| Insert Size (Decimal Inch) | 0.1250 |
| Number of Drill Inserts | 1 |
| Overall Length/Projection (Decimal Inch) | 24.8000 |
| Insert Compatibility | TOGT 10 |
| Flute Length (Decimal Inch) | 20.8000 |
| Body Length (Decimal Inch) | 22.4400 |
| Shank Length (Decimal Inch) | 2.3600 |
| Series | TriDeep |
