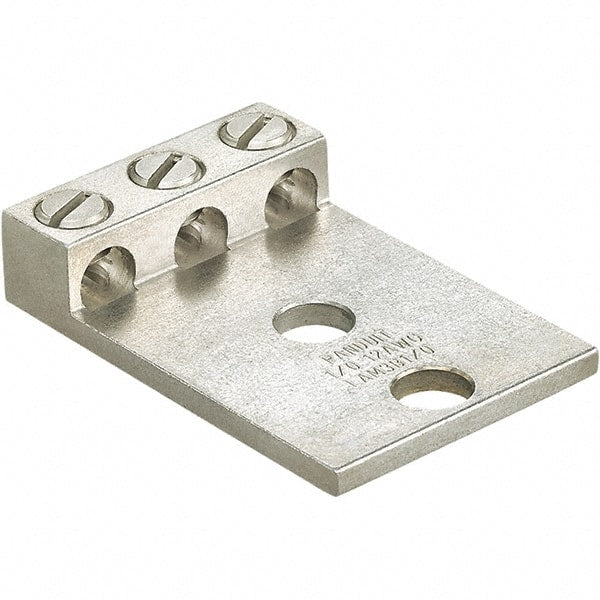

Panduit - 6 AWG Noninsulated Lug Connection Square Ring Terminal - 1/2" Stud, 4" OAL x 2.82" Wide, Tin Plated Aluminum Contact
Item #: 46795324
Brand: Panduit
Model #: LAM3B250-12-1Y
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Terminal Type | Square |
| Insulation Type | NonInsulated |
| Connection Type | Lug |
| Compatible Wire Size (AWG) | 6 |
| Compatible Wire Size (kcmil) | 250 |
| Stud Size (Inch) | 1/2 |
| Contact Material | Aluminum |
| Thickness (mm) | 7.87 |
| Thickness (Decimal Inch) | 0.3100 |
| Thickness (Inch) | 0.3100 |
| Ring Width (Inch) | 2.8200 |
| Ring Width (Decimal Inch) | 2.8200 |
| Ring Width (mm) | 71.63 |
| Overall Length (mm) | 101.60 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4 |
| Contact Plating | Tin |
