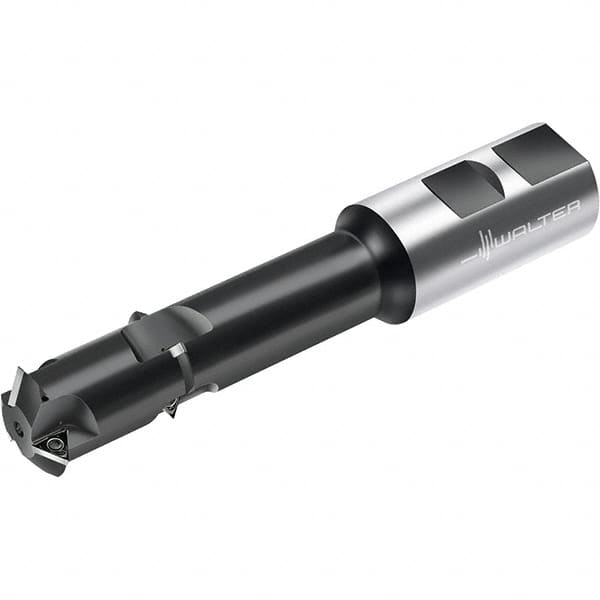

Walter - 52mm Cut Diam, 135mm Max Hole Depth, 40mm Shank Diam, Indexable Thread Mill - Insert Style P26300, 8 Inserts, Toolholder Style T2711, 216.7mm OAL
Item #: 46803714
Brand: Walter
Model #: 7356301
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 52 |
| Cutting Diameter (Decimal Inch) | 2.047 |
| Maximum Hole Depth (mm) | 135.00 |
| Insert Style | P26300 |
| Insert Size | 1404,1402,1401 |
| Toolholder Style | T2711 |
| Shank Diameter (mm) | 40.00 |
| Overall Length (mm) | 216.70 |
| Number of Threading Inserts | 8 |
| Cutting Direction | Right Hand |
| Toolholder Material | Steel |
| Insert Holding Method | Screw |
