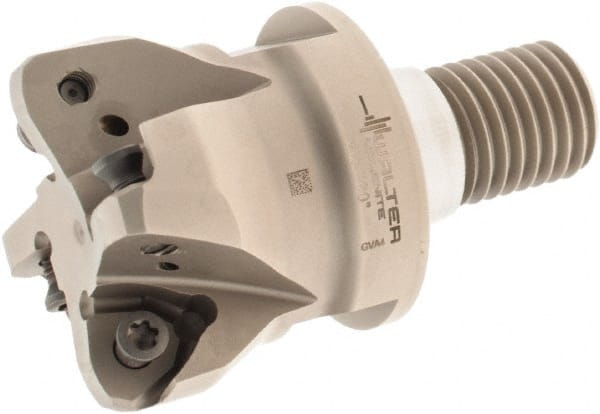

Walter - 21° Lead Angle, 2" Max Cut Diam, 1.291" Min Cut Diam, 0.079" Max Depth of Cut, Indexable Chamfer & Angle End Mill - 4 Inserts, P23696 Insert Style, 80mm OAL, Through Coolant, Threaded Shank
Item #: 46857520
Brand: Walter
Model #: 5882947
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Shank Type | Modular Connection |
| Modular Connection Size | T45 |
| Number of Cutter Inserts | 4 |
| Insert Style | P23696 |
| Toolholder Style | F4030 |
| Insert Holding Method | Screw |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (Decimal Inch) | 1.2910 |
| Through Coolant | Coolant Through |
| Head Length (Decimal Inch) | 1.7720 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1500 |
| Series | ScrewFit; Xtra-tec |
| Lead Angle | 21 |
