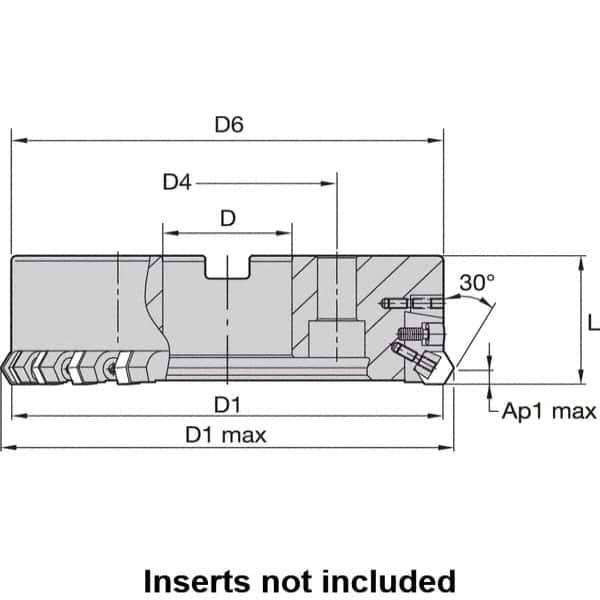

Kennametal - 12" Cut Diam, 2-1/2" Arbor Hole, 8mm Max Depth of Cut, 30° Indexable Chamfer & Angle Face Mill - 40 Inserts, HNGX 0905... Insert, Left Hand Cut, 40 Flutes, Series HexaCut
Item #: 46862454
Brand: Kennametal
Model #: 2964502
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 12 |
| Cutting Diameter (mm) | 313.44 |
| Cutting Diameter (Decimal Inch) | 12.3400 |
| Arbor Hole Diameter (mm) | 63.50 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 30 |
| Overall Height (Decimal Inch) | 3.1496 |
| Overall Height (mm) | 80.00 |
| Insert Compatibility | HNGX 0905... |
| Series | HexaCut |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 40 |
| Cutter Style | M750 |
| Number of Flutes | 40 |
| Maximum Body Diameter (Decimal Inch) | 8.2780 |
| Maximum RPM | 1800 |
| Cutting Direction | Left Hand |
| Complete Insert Compatibility | HNGX 0905... |
