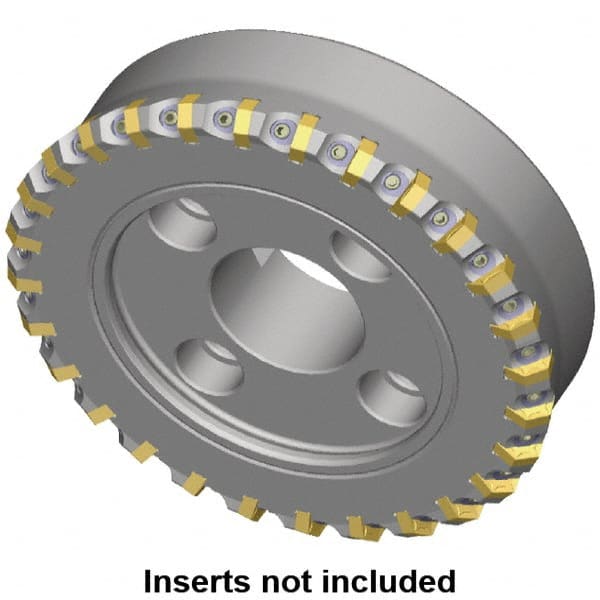

Kennametal - 108.7mm Cut Diam, 32mm Arbor Hole, 8mm Max Depth of Cut, 30° Indexable Chamfer & Angle Face Mill - 10 Inserts, HNG. 0905... Insert, Right Hand Cut, 10 Flutes, Series HexaCut
Item #: 46862488
Brand: Kennametal
Model #: 2016167
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 108.70 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 30 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | HNG. 0905... |
| Series | HexaCut |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 10 |
| Cutter Style | M750 |
| Number of Flutes | 10 |
| Hub Diameter (mm) | 100.00 |
| Maximum RPM | 3400 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | HNG. 0905... |
