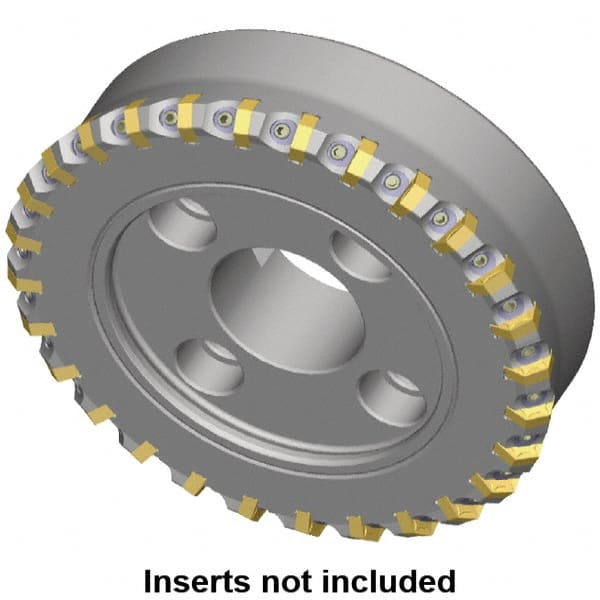

Kennametal - 137.8mm Cut Diam, 40mm Arbor Hole, 6.5mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 18 Inserts, HNGX 0905... Insert, Right Hand Cut, 18 Flutes, Series HexaCut
Item #: 46862546
Brand: Kennametal
Model #: 2016111
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 137.80 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | HNGX 0905... |
| Series | HexaCut |
| Maximum Depth of Cut (mm) | 6.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Number of Cutter Inserts | 18 |
| Cutter Style | M750 |
| Number of Flutes | 18 |
| Hub Diameter (mm) | 125.00 |
| Maximum RPM | 3000 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | HNGX 0905... |
