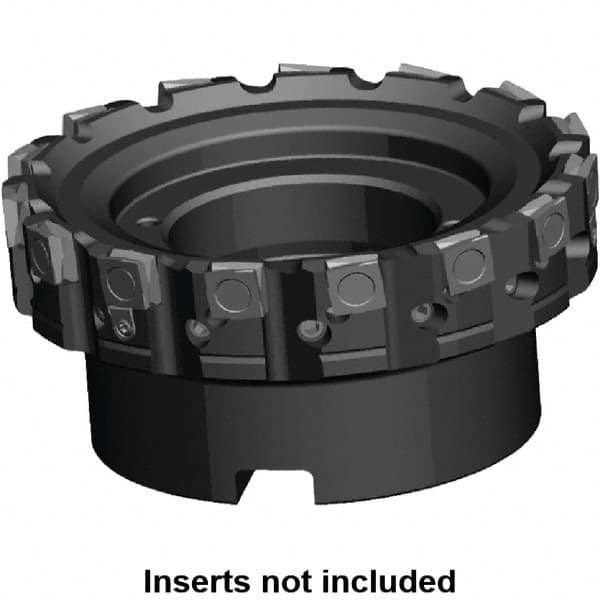

Kennametal - 10 Inserts, 80mm Cut Diam, 27mm Arbor Diam, 6mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 50mm High, SPHX 1205... Insert Compatibility, Series Fix-Perfect
Item #: 46863320
Brand: Kennametal
Model #: 1501655
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | SPHX 1205... |
| Series | Fix-Perfect |
| Maximum Depth of Cut (mm) | 6.00 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Clamp |
| Cutter Style | CFP |
| Number of Flutes | 10 |
| Hub Diameter (mm) | 64.00 |
| Hub Diameter (Decimal Inch) | 2.5197 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 4000 |
| Complete Insert Compatibility | SPHX 1205PC.R.. |
